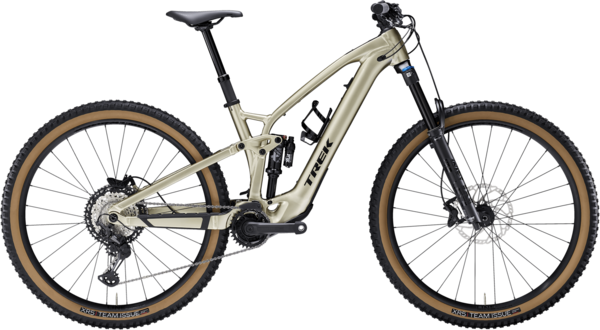

Trek Fuel EXe 8 XT
Details
Fuel EXe 8 is a trail-ready aluminum electric mountain bike that quietly assists you on the climbs so you've got all the power you need on descents. Like its carbon counterpart, it looks and handles like a traditional trail bike, but with the added support of a tiny-but-mighty harmonic pin ring drive system with sleek top-tube display unit and compact remote. It comes ready to rip with upgraded parts where they matter most, like a FOX suspension package, wide Bontrager Line Comp Tubeless Ready wheels, and a Shimano XT 12-speed drivetrain.
IT'S RIGHT FOR YOU IF…
Performance matters to you, but so does the price tag. You want all of the tech you'll find in the top-of-the-line Fuel EXe, but in a bike that's built for your budget. You want upgraded components you can trust to keep ripping, and a robust alloy frame that rallies through the rough and gives you just enough power on the ups.
THE TECH YOU GET
An Alpha Platinum Aluminum frame with TQ's HPR50 harmonic pin ring drive system, a fully-encased 360Wh removable battery, and smart charging port. An integrated LED display and handlebar remote that are easy to use on the fly. 150mm FOX Rhythm 36 front suspension with Float EVOL air spring and GRIP damper, and 140mm FOX Performance Float X rear suspension. Plus, wide, Tubeless Ready Bontrager Line Comp 30 wheels, a 12-speed Shimano XT drivetrain, hydraulic disc brakes, and a dropper post.
THE FINAL WORD
If you want all the tech of the top-tier Fuel EXe without the sticker shock, Fuel EXe 8 is for you. You get the same drive system, display, and geometry of its carbon counterpart, plus an upgraded suspension package and Shimano XT drivetrain- on a more economical alloy chassis.
WHY YOU'LL LOVE IT
- You get all the tech of our top-end light e-MTB without a price tag that makes you say ouch
- Its upgraded FOX suspension package smooths the trail while 12-speed Shimano XT drivetrain shifts clean under load
- Its tiny but mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
- The integrated display, charging port, and controls are simple to use, sleek, and intuitive
- You can tweak your geometry with Mino Link, or add an adjustable angle headset to take even more control
Frame size number | 15.5" | 15.5" | 17.5" | 17.5" | 19.5" | 19.5" | 21.5" | 21.5" |
---|---|---|---|---|---|---|---|---|
Frame size letter | S | S | M | M | L | L | XL | XL |
Geometry position | High | Low | High | Low | High | Low | High | Low |
Wheel size | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
A — Seat tube | 38 | 38 | 41 | 41 | 43.5 | 43.5 | 47 | 47 |
B — Seat tube angle | 69.3° | 68.8° | 69.8° | 69.3° | 70.8° | 70.3° | 71.3° | 70.8° |
Effective seat tube angle | 77.3° | 76.8° | 77.3° | 76.8° | 77.3° | 76.8° | 77.3° | 76.8° |
C — Head tube length | 10 | 10 | 11 | 11 | 11 | 11 | 12 | 12 |
D — Head angle | 65.3° | 64.8° | 65.3° | 64.8° | 65.3° | 64.8° | 65.3° | 64.8° |
E — Effective top tube | 57.2 | 57.3 | 59.9 | 60 | 62.9 | 63 | 65.6 | 65.8 |
F — Bottom bracket height | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 |
G — Bottom bracket drop | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 |
H — Chainstay length | 43.8 | 44 | 43.8 | 44 | 43.8 | 44 | 43.8 | 44 |
I — Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
J — Trail | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 |
K — Wheelbase | 118.7 | 118.8 | 121.6 | 121.7 | 124.6 | 124.7 | 127.6 | 127.6 |
L — Standover | 73.2 | 72.6 | 73.3 | 72.7 | 73.9 | 73.3 | 75.9 | 75.3 |
M — Frame reach | 43.4 | 42.8 | 45.9 | 45.3 | 48.9 | 48.3 | 51.4 | 50.8 |
N — Frame stack | 61.6 | 62 | 62.5 | 62.9 | 62.5 | 62.9 | 63.4 | 63.8 |
Size | Rider Height | Inseam |
---|---|---|
S | 155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
M | 165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
L | 177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
XL | 188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
Specs
Frame | Alpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel |
---|---|
Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel |
Rear Shock | Fox Performance Float X, 2-position damper, 205mm x 60mm |
Wheels |
Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29" Wheel rear: Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29" |
Tires | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
Crankset | E*thirteen E*spec Plus, 165mm length |
Chainrings | E*thirteen E*spec, 32T alloy ring, 55mm chainline |
Shifters | Shimano XT M8100, 12 speed |
Rear Derailleur | Shimano XT M8100, long cage |
Cassette/Freewheel | Shimano XT M8100, 10-51, 12 speed |
Chain | Shimano Ultegra/XT M8100, 12 speed |
Brakes | Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper |
Rotors | Shimano RT66, 6-bolt, 203mm |
Handlebars | Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
Tape/Grips | Bontrager XR Trail Elite, nylon lock-on |
Stem | Bontrager Elite, 35mm, 0 degree, 45mm length |
Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
Seatpost |
Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length Size: M Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length Size: L, XL Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length |
Saddle |
Size: S, M, L, XL Bontrager Arvada, hollow chromoly rails, 138mm width Size: S, M, L, XL Bontrager Verse P3, chromoly rails |
Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
Battery | TQ 360Wh |
Controller/Display | TQ LED display with Bluetooth & ANT+ connectivity |
Charger | TQ 4A charger |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Supernova / Small / 29-inch | 197216037606 | 5321995 |
Supernova / Medium / 29-inch | 197216037613 | 5321996 |
Supernova / Large / 29-inch | 197216037620 | 5321997 |
Supernova / X-Large / 29-inch | 197216037637 | 5321998 |
