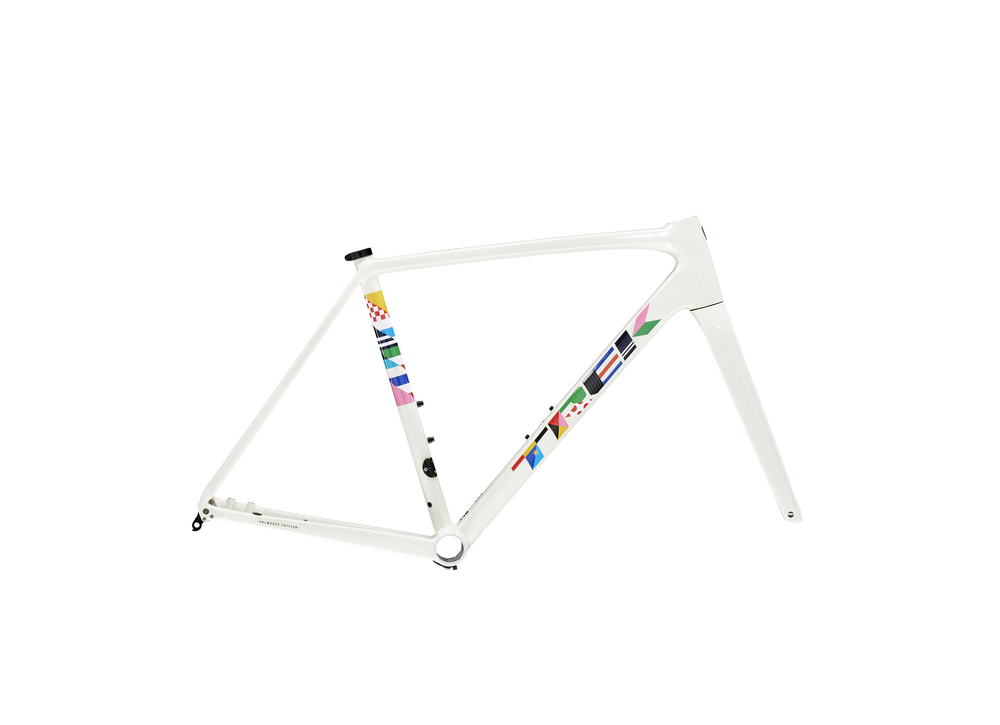

Trek Emonda ALR Disc Frameset

Trek Emonda ALR Disc Frameset
  • Color: Era White
  • Color: Dnister Black
$1,199.99
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This manufacturer currently prefers that we only sell this item in our retail store. Please visit us soon.

Details

Emonda ALR frameset is a race-ready, top-tier alloy frame that's intensely light, fast, and far more pocket-friendly than carbon frames of its caliber. This lightweight frame is built with top-tier road racing H1.5 geometry, with an integrated cockpit and Kammtail tube shapes for aerodynamic advantage.

It's right for you if...
You're building up a disc road bike for club rides or races, and you want an advanced aluminum frame with the sleek looks and handling characteristics normally found only in carbon models.

The tech you get
An ultralight 300 Series Alpha Aluminum frame with aerodynamic Kammtail shaped tubes, Invisible Weld Technology for seamless joints, and internal cable routing. Includes an Emonda SL carbon fork with a carbon steerer and a headset. Built for flat-mount disc brakes.

The final word
Carbon looks and ride quality, aluminum price point. If you thought alloy couldn't contend with carbon in beauty and performance, think again. Emonda ALR Disc frameset is a value-minded ride that's perfectly comfortable taking a far more expensive carbon bike to the line.

Why you'll love it:
- This ultralight alloy frame is designed for racing and packs in super tidy cable routing
- It climbs fast, corners hard, and descends with confidence
- Kammtail tube shapes help make Émonda ALR even faster than before
- It shares the geometry of our highest-end carbon Emonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
- Internal cable routing extends the life of your cables and adds to the bike's sleek look

Features:

Lightest in its class
Emonda ALR was built with our best and lightest 300 Series Alpha Aluminum and a gram-trimming design to keep things light, fast, and fun.

Race-ready geometry
An optimized H1.5 race geometry, developed in collaboration with Trek-Segafredo, puts you in the right position for power.

Refined integration
Integrated cable routing cleans up the cockpit and makes Emonda ALR even faster in the wind.

Faster than ever
Emonda ALR's new Kammtail aero tube shaping keeps things light and fast wherever you ride – whether you're powering up climbs or racing across flats.

Geometry

Sizes:
Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size 700c 700c 700c 700c 700c 700c 700c 700c
A — Seat tube 42.4 45.3 48.3 49.6 52.5 55.3 57.3 59.3
B — Seat tube angle 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.8° 72.5°
C — Head tube length 10 11.1 12.1 13.1 15.1 17.1 19.1 21.1
D — Head angle 72.1° 72.1° 72.8° 73.0° 73.5° 73.8° 73.9° 73.9°
E — Effective top tube 51.2 52.1 53.4 54.3 55.9 57.4 58.6 59.8
G — Bottom bracket drop 7.2 7.2 7.2 7 7 6.8 6.8 6.8
H — Chainstay length 41 41 41 41 41 41.1 41.1 41.2
I — Offset 4.5 4.5 4.5 4.5 4 4 4 4
J — Trail 6.8 6.2 5.8 5.6 5.8 5.7 5.6 5.6
K — Wheelbase 97.2 97.4 97.7 98.1 98.3 99.2 100.1 101
L — Standover 69.2 71.1 73.2 74.4 76.8 79.3 81.1 82.9
M — Frame reach 37.3 37.8 38.3 38.6 39.1 39.6 39.9 40.3
N — Frame stack 50.7 52.1 53.3 54.1 56.3 58.1 60.1 62
Stem length 70 80 90 90 100 100 110 110
Sizes:
SizeRider HeightInseam
47 152 - 158 cm 71 - 75 cm
5'0" - 5'2" 28" - 30"
50 158 - 163 cm 74 - 77 cm
5'2" - 5'4" 29" - 30"
52 163 - 168 cm 76 - 79 cm
5'4" - 5'6" 30" - 31"
54 168 - 174 cm 78 - 82 cm
5'6" - 5'9" 31" - 32"
56 174 - 180 cm 81 - 85 cm
5'9" - 5'11" 32" - 33"
58 180 - 185 cm 84 - 87 cm
5'11" - 6'1" 33" - 34"
60 185 - 190 cm 86 - 90 cm
6'1" - 6'3" 34" - 35"
62 190 - 195 cm 89 - 92 cm
6'3" - 6'5" 35" - 36"

Specs

Fork Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Frame Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Era White / 56cm / 700c 601842805848 5280427 EMO25480113E
Era White / 62cm / 700c 601842805879 5280430 EMO25848127E
Dnister Black / 47cm / 700c 601842805725 5280415 EMO29555327K
Dnister Black / 50cm / 700c 601842805732 5280416 EMO29878296K
Dnister Black / 52cm / 700c 601842805749 5280417 EMO29449840K
Dnister Black / 54cm / 700c 601842805756 5280418 EMO29638184K
Dnister Black / 56cm / 700c 601842805763 5280419 EMO29991553K
Dnister Black / 58cm / 700c 601842805770 5280420 EMO29129429K
Dnister Black / 60cm / 700c 601842805787 5280421 EMO29754461K
Dnister Black / 62cm / 700c 601842805794 5280422 EMO29146756K
